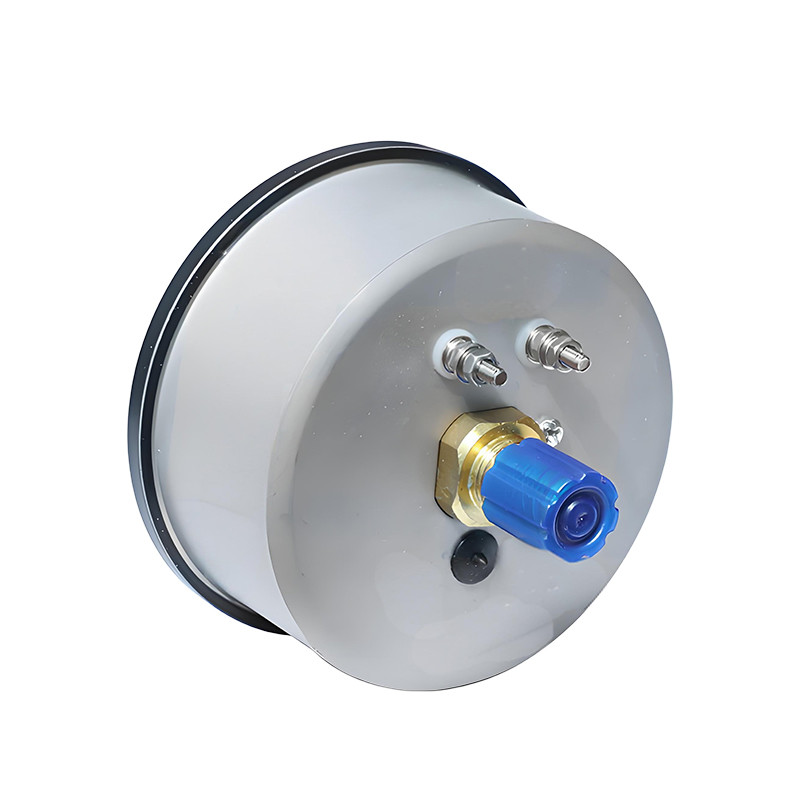

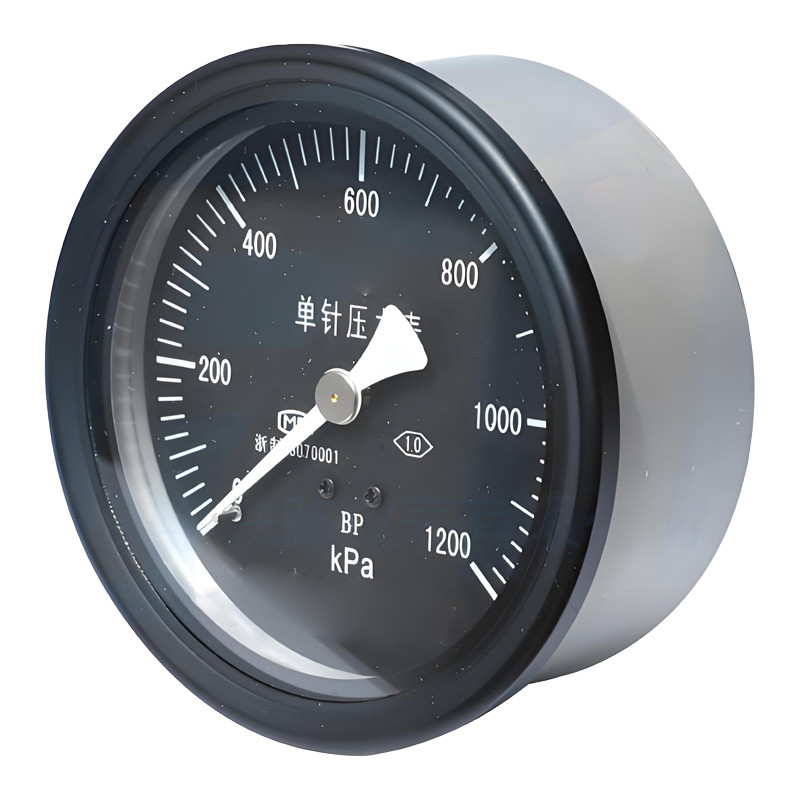

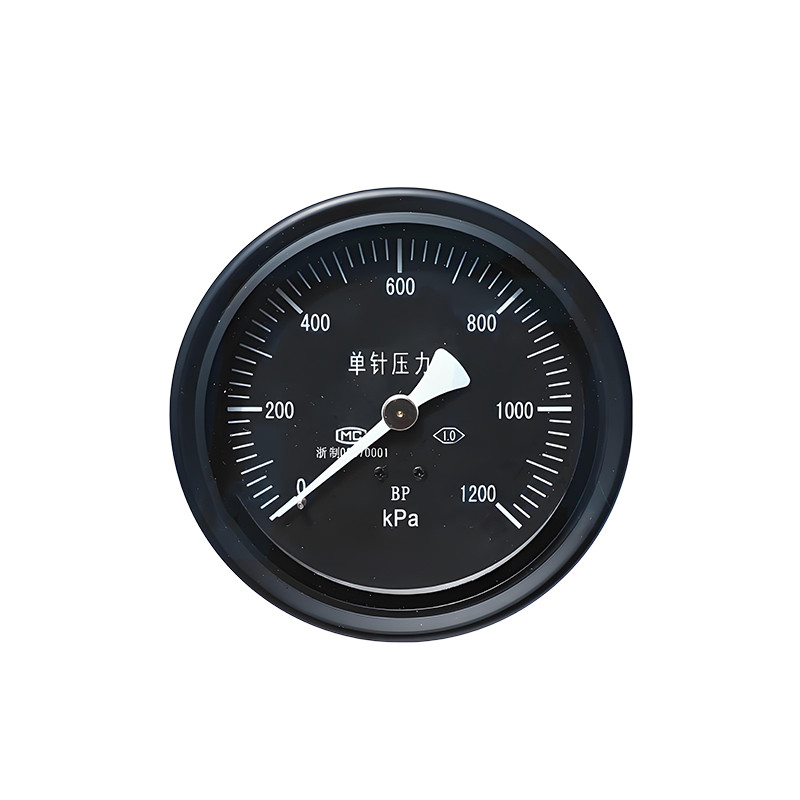

HTCS100 Single-needle Pressure Gauge In Locomotive Air Compressors
| Place of Origin | China |
|---|---|
| نام تجاری | HTR |
| Model Number | HTCS100 |
| Minimum Order Quantity | 10pcs |
| قیمت | قابل مذاکره |
| Packaging Details | Carton box, Wooden case, as per requires |
| Delivery Time | 15-50 days, depends on QTY |
| Payment Terms | L/C,T/T,Western Union,Paypal |
| Supply Ability | 1,000 pcs/month |
برای نمونه ها و کوپن های رایگان با من تماس بگیرید.
واتساپ:0086 18588475571
وکت: 0086 18588475571
اسکایپ: sales10@aixton.com
اگر شما هر گونه نگرانی دارید، ما 24 ساعت کمک آنلاین ارائه می دهیم.
xجزئیات محصول
| Measuring Range | 0 ~ 1200 kPa | Accuracy Class | Class 1.0 |
|---|---|---|---|
| Operating Temperature | -40°C to +70°C, with relative humidity not exceeding 95% | Temperature Influence | When ambient temperature deviates from 20°C ± 5°C, additional error ≤ 0.4%/10°C |
| Illumination Voltage | DC 110V ±20% | Dielectric Strength | 1500V / 50Hz, duration 1 minute |
| برجسته کردن | Single-needle Pressure Gauge,Locomotive Air Compressors Pressure Gauge,HTCS100 Pressure Gauge,Locomotive Air Compressors Pressure Gauge,HTCS100 Pressure Gauge |
||
توضیحات محصول
Products Description
The single-needle pressure gauge is primarily used for measuring pressure in locomotive air compressors, hydraulic systems, or air reservoirs. Its operating principle is based on the deformation of a Bourdon tube under the action of medium pressure. This deformation is transmitted and amplified through a mechanical linkage, driving the pointer to deflect across the calibrated dial to indicate the measured pressure value.
This pressure gauge features an axial structure and is capable of measuring two identical or different pressures simultaneously. It is equipped with a ring-shaped LED light source positioned at the top of the dial, providing soft illumination that enhances visibility and facilitates observation during nighttime operation.
Specification
|
Item |
Specification |
|
Measuring Range |
0 ~ 1200 kPa |
|
Accuracy Class |
Class 1.0 |
|
Operating Temperature |
-40°C to +70°C, with relative humidity not exceeding 95% |
|
Temperature Influence |
When ambient temperature deviates from 20°C ±5°C, additional error ≤ 0.4%/10°C |
|
Illumination Voltage |
DC 110V ±20% |
|
Dielectric Strength |
1500V / 50Hz, duration 1 minute |
|
Standard Compliance |
Complies with GB/T 1226-2010 (General Pressure Gauge Standard) |
