Train Locomotive Measuring Pressure HTS-80Z-1 Dual-needle Pressure Gauge
| Place of Origin | China |
|---|---|
| نام تجاری | HTR |
| Model Number | HTS-80Z-1 |
| Minimum Order Quantity | 10pcs |
| قیمت | قابل مذاکره |
| Packaging Details | Carton box, Wooden case, as per requires |
| Delivery Time | 15-50 days, depends on QTY |
| Payment Terms | L/C,T/T,Western Union,Paypal |
| Supply Ability | 1,000 pcs/month |
برای نمونه ها و کوپن های رایگان با من تماس بگیرید.
واتساپ:0086 18588475571
وکت: 0086 18588475571
اسکایپ: sales10@aixton.com
اگر شما هر گونه نگرانی دارید، ما 24 ساعت کمک آنلاین ارائه می دهیم.
xجزئیات محصول
| Measuring Range | 0 ~ 1600 kPa | Accuracy Class | Class 1.0 |
|---|---|---|---|
| Operating Temperature | -40°C to +70°C, with relative humidity not exceeding 95% | Temperature Influence | When ambient temperature deviates from 20°C ± 5°C, additional error ≤ 0.4%/10°C |
| Illumination Voltage | DC 24V ±20% | Dielectric Strength | 1500V / 50Hz, duration 1 minute |
| برجسته کردن | HTS-80Z-1 Dual-needle Pressure Gauge,Locomotive Measuring Pressure Gauge,HTS-80Z-1 Pressure Gauge,Locomotive Measuring Pressure Gauge,HTS-80Z-1 Pressure Gauge |
||
توضیحات محصول
Products Description

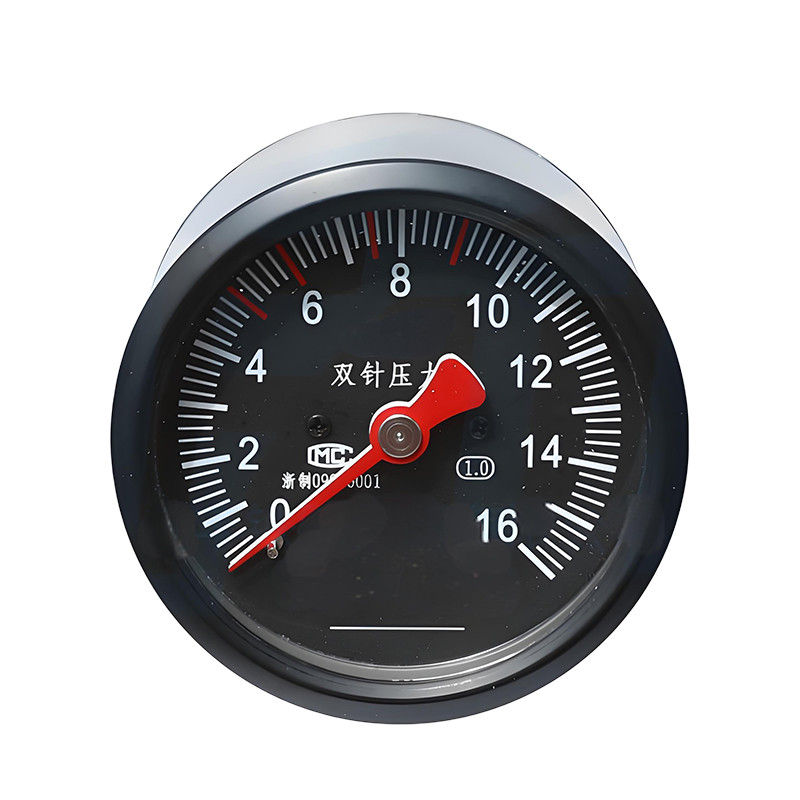

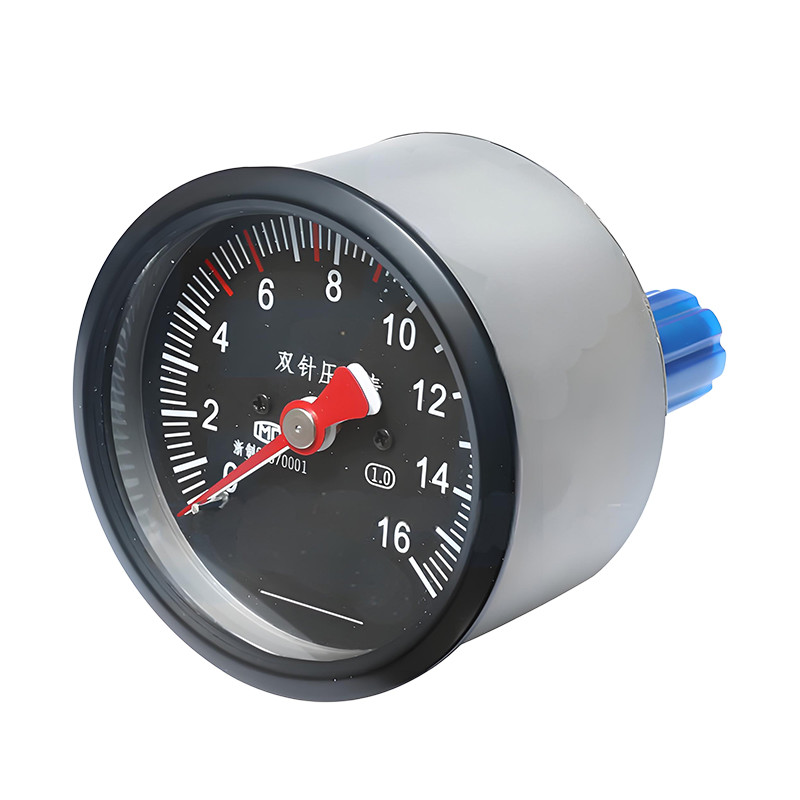

The dual-needle pressure gauge is primarily used for measuring pressure in locomotive air compressors, hydraulic systems, or air reservoirs. Its working principle is based on the deformation of a Bourdon tube under the action of medium pressure. This deformation is transmitted and amplified through a mechanical linkage, which drives the pointer to deflect along the dial scale, indicating the measured pressure value.

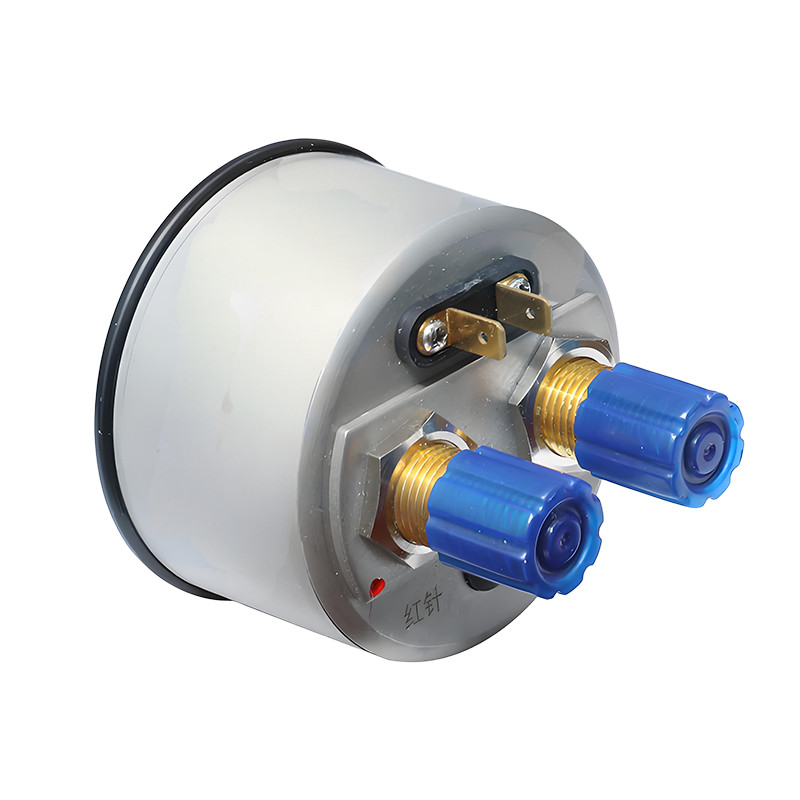

This pressure gauge features an axial structure and is capable of measuring two identical or different pressures simultaneously. It is equipped with a soft LED ring light positioned at the upper part of the dial, providing gentle illumination to facilitate clear reading during night-time operation.
Specification
|
Item |
Specification |
|
Measuring Range |
0 ~ 1600 kPa |
|
Accuracy Class |
Class 1.0 |
|
Operating Temperature |
-40°C to +70°C, with relative humidity not exceeding 95% |
|
Temperature Influence |
When ambient temperature deviates from 20°C ±5°C, additional error ≤ 0.4%/10°C |
|
Illumination Voltage |
DC 24V ±20% |
|
Dielectric Strength |
1500V / 50Hz, duration 1 minute |
|
Standard Compliance |
Complies with GB/T 1226-2010 (General Pressure Gauge Standard) |
